The Real Cost of Long-Travel IFS — And the Bargain Hiding in Plain Sight
If you’ve already installed a Long Travel kit and are now evaluating your next move, this breakdown is written for you.
If you’re brand new to Long Travel and want to start at the smartest possible baseline, you’ll quickly see why so many owners decide to skip the stack of parts entirely and go straight to a unified engineered system instead.
This article is compiled for Type III & IV IFS owners (2003-2024 Toyota/Lexus, more info) looking to run 35″ (315) or larger tires, as your vehicle cannot both fit nor sustain tires this size without upgrades covered in this article. Indeed, 33s bust stock tie rods, 34s bend stock knuckles, and 35s KO stock racks.
For a quick backstory, the idea for this article hit me while tuning my old KLEIN Mantra mountain bike. I bought it new in 1997, and at the time it was cutting-edge as one of the first dual-suspension frames on the market. But as technology evolved over the next 30 years, I kept trying to “modernize” it with one-off upgrades to keep it competitive in amateur XC events.
I added a custom oversized titanium rear cassette years before big cogs existed, shaved my crankset for a micro granny ring, converted to a single front chainring, made multiple anti-chain derailment solutions, built a custom b-link to mount a modern rear derailleur, and even made a cable pull ratio adapter to make a 10spd shifter work with a 1×8 drivetrain.
Every upgrade solved one problem but created two more. The deeper I went, the more money I dumped, and the harder it became to admit the real issue: I wasn’t building a system – I was stacking mismatched solutions onto a drivetrain that was never designed to run them together. I was chasing performance that my patchwork of parts could never deliver as a whole.
I wasn’t building a system – I was stacking mismatched solutions onto a drivetrain that was never designed to run them together.
If I had simply started with a complete, modern component groupset designed to work as an integrated system instead of stacking individual upgrades that weren’t meant for one another, I wouldn’t have spent years chasing my tail in a spiral of incompatible mods.
And that’s exactly how Long Travel has been for decades. Plenty of companies make kits, but not a single one addresses all of the inevitable challenges that appear the moment you lift and widen a modern Toyota/Lexus:
|
Will this break? Will it drive sketchy? Will my alignment guy hate me? |
|
The real off-road stuff |
|
What we rarely think about (until they break) |
Drivers have been forced to piece together unrelated helper parts just to work around the limits of what their LT kit was never designed to solve.
That is, until RCLT HD.
RCLT HD fixes all of these issues in one, engineered, integrated, system-level solution. Many assume a premium solution like that must cost more than piecing together separate arms, knuckles, body mount mods, tie rods, racks, and frame reinforcements. But the moment you stop viewing Long Travel as separate components and start viewing it as a system, everything changes.
Because here’s the part nobody tells you – solving these problems the old way doesn’t just take more effort. It costs a lot more money:
If you try to “build your way” toward RCLT HD using every upgrade currently on the market, your final price will be $15,000–$17,000–more than double what RCLT HD costs–while still ending up with weaker geometry, weaker components, weaker steering, less travel, less clearance, and even 1.5–3× more labor to install.
What You’d Need to Buy Without RCLT HD
Let’s break it down the way a mechanic, fabricator, and builder will understand – starting with a baseline an owner would realistically set up their rig for:
- 33″ tires → requires a lift + trimmed/chopped body mount + inner tie rod upgrade
- 35″ tires → the above + body mount relocation + knuckle strength upgrades + replacement steering rack
- 37″ tires → all the above + cutting, moving, re-welding control arm pivots + double-shear TRE
- 38″ or taller tires → outside traditional safe standards for IFS
As you get into decent tire sizes, these mods become irreversible, as you must chop off cab mounts & control arm frame pivots as the only way to clear the cab.
And as we’ll show below, these all add-up to an enormous about of labor you don’t think about until you lay it all out: 5 hrs for body mount frame issues, 18 hours for steering issues, up to 6 hrs for knuckle strength issues, and 10 hours for 37″+ tire clearance frame issues. We’re talking a good 38 hours, or 5 business days, and you haven’t even installed a Long Travel Kit yet! Finally, half these mods are irreversible and non-removable, so you’ll have to re-purchase parts and re-pay for duplicate fab work if switching platforms.
In comparison, RCLT HD is the world’s first and only system-level full replacement that retains all stock bolt-on mounting locations, fits 40″ tires with stock body mounts, has true full-size steering strength + geometry, and is fully reversible & transferable: Start with a Tacoma, and later swap the full system over to an SUV, or vice versa. And best of all, installing the entire system – Long Travel, Steering, and all – only takes 28 hours on average across 8 different platforms. In fact, for Tacomas, which is the least time consuming, a motivated installer could complete the entire process in one very long day.
Couple notes before we begin:
- No matter which route you take, a Long Travel setup will always require longer axles (4WD) and taller coil overs, which add another $2K–$4K to the build. Because these are required parts rather than alternatives to RCLT HD, they are not part of this breakdown.
- I’ll use an average shop labor rate of $125/hour.
- I’ll use an average sales tax rate of 7.52% (source: taxfoundation.org, 12/2025). A few States do charge tax on labor, but for this breakdown we’ll leave it out.
So let’s dive in to what you’d need to buy without RCLT HD. This isn’t just a product comparison – it’s a total cost of ownership and labor reality check.
As we have all known for decades, no single solution exists on the market to fit & reliably run 33″ or larger tires. This is why the RCLT HD system was created in the first place. At best, your options are as follows:
1. BMR (Body Mount Relocation)
Stock A-pillar or front cab body mounts must be shaved or chopped to fit 33″ tires, but because the stock frame bracket is so large it must be entirely cut off and a smaller-sized Relocation Kit welded in place to fit 35s.
Avg market price: $259
Sales tax: $19.50
Shipping charge: $15
Labor: 5 hours at $125/hr → $625
Total: $919
Now you can fit 35″ tires, but RCLT HD already clears up to 40s – no BMR needed. First step & already one grand saved with RCLT HD.
2. A Custom Narrowed 2nd Gen Tundra Rack Swap
NEW→ Click to view a more indepth Tundra Rack Comparison Article
In order to reliably run 35″ tires, a custom shop narrows a full-size Tundra rack to fit into your mid-size platform by:
- Replacing the Tundra racks’ original full-size bushings with offset pucks to adapt to small mid-size frame mounts
- Narrowing the heat-treated inner rack by cutting off the full-size ITR mounts from both ends
- Welding-in new inserts at the proper mid-size width with matching small mid-size threads
- The full-size Tundra rack has now been converted to mid-size
It’s clever machining, but comes with major drawbacks:
- (1) Despite the Tundra rack body mounting to stock frame holes, it is physically larger and has a different rack centerline
- (2) This means the Inner Tie Rods (ITR) are physically located on a new plane (position) in the frame
- (3) Because knuckle geometry is not updated to match, steering and driving feel are both negatively affected
- Downgrades full-size Tundra tie rod connection to tiny mid-sized threads: 14mm (Tacoma) or 22/24mm (SUV)
- Downgrades rack-to-frame mount hardware, which was 14mm in a Tundra but now just 11mm for mid-size frame
- No center mount provision, No double-shear mount option
- All V8 applications require additional engine mount spacers
- Custom-order only – replacement means thousands in costs and weeks of downtime
- Tundra is a North America-only vehicle, so no Right-Hand Drive option
Avg market price: $1,798
Sales tax: $135.17
Shipping charge: $50
Labor: 16 hours at $125/hr → $2,000
Total: $3,983
In comparison, RCLT HD…
- (1) Is a complete replacement system that fully upgrades your mid-size vehicle to full-size steering
-
- Uses a 200-series Land Cruiser rack, aka The MarRack
- Strongest passenger vehicle rack Toyota offers
-
- (2) Therefore no custom narrowing or any other internal rack mods necessary
- Retains full-size steering at knuckle = more turning power + less feedback stress on all up-stream components
- Retains full-size tie rod connection
- MarRack Frame Mount Comparison vs. Tundra rack:
- Retains full-size 14mm rack-to-frame mount hardware (62% stronger × 2 bolts!)
- Has both center and double-shear options for triple-path frame mount
- Has up to a 6-bolt frame connection compared to only 2
- Has up to 8 full-size hardware shear faces compared to just two smaller mid-size + single-shear mounts
- All 6 frame mount bolts can snap in half and you’d still be able to drive arguably hundreds of miles to safety
- Steering rack frame connection is minimum 4× stronger + more reliable
- Does not require engine mount spacers for V8 installation
- Mass-produced & available over-the-counter worldwide in both left or right-hand drive configurations
- Full-size rack retains 100% full-size design & geometry in both installation & operation
It’s even more wild when we see how much more affordable a Land Cruiser rack is:
- As low as $291 Budget option new rack (no core charge) from parts stores nationwide
- As high as $1,086 Highest Quality/Recommended Genuine Toyota from any Toyota/Lexus dealer worldwide
Final rack cost for RCLT HD owners: 3.7–14× reduction!
The smartest upgrade you can make is not another custom part… it’s a new engineered baseline:
With a Narrowed Tundra Rack, your original light-duty steering geometry is baked into the full-size rack, resulting in above-average strength. Conversely, RCLT HD is designed from the start with full-size geometry engineered into a full replacement system for actual full-size steering strength & power.
Rolling tally for upgrades 1 + 2: $4,901
Labor for 1 + 2: 21 hours
⚠ This is already about the same labor to install a complete RCLT HD into a Tacoma
3. Clevis + Heim-Joint Inner Tie Rod Upgrade Kits
Larger tires increase steering forces. Stock ITRs have only a 14mm diameter at their center and commonly buckle with even just 285 tires.
Aftermarket solution:
- Convert to inner heim joints using a clevis threaded into each end of the rack
- Now it is easy to replace the stock 14mm diameter tie rod with larger machined tubing
It’s a nice idea, but comes with major drawbacks:
- Retains original tiny 14mm (Tacoma) or 22/24mm (SUV) light-duty threaded connection to rack
- This design is comprised of 18 separate parts (9 per side):
-
- 2× Custom-machined Clevis
- 2× Small center rack bolt to affix clevis to rack
- 2× Bolts for heim (light-duty, 1/2″ hardware)
- 4× Flat washers
- 2× Lock nuts
- 4× Misalignment spacers
- 2× Heim joints (3/4″ shank with downsized 28.6mm diameter ball joint)
-
- High component count decreases safety between steering wheel and tires
- Heim joints wear out many times faster than OE-style press-fit ball joints
- Increased cost & maintenance compared to OE-style press-fit ball joints
- Parts are custom-made + non OE-type, not available at auto parts stores
Avg market price: $800 to $1,325 kits → $1,063
Sales tax: $79.90
Shipping charge: Up to $50
Labor: 2 hours at $125/hr → $250
Total (avg): $1,442
RCLT HD avoids this entirely by:
- Reusing Toyota’s factory full-size LC ITR with OE reliable press-fit joint meant to last hundreds of thousands of miles
- No issues with clevis hardware contacting and wearing-through inner tie rod boots
- Land Cruiser ITR is only just one press-fit, non-servicable single component for maximum reliability
- Land Cruiser ITR ball joint is 40mm (nearly 50% larger!), massive 55mm outer diameter
- Retains full sealed inner tie rod boot, protecting both ITR and rack from elements/debris
- Retains original full-size heavy duty 28mm connection to rack
Rolling tally for upgrades 1-3: $6,344
Labor for 1-3: 23 hours
⚠ You’ve already exceeded the cost of RCLT HD and don’t even have a LT kit yet
4. Knuckle Reinforcement + Aftermarket Double-Shear Add-Ons
So now you can fit 35s and have upgraded your steering. Your knuckles are the next weaklink. In fact, stock knuckles bend permanently from just sliding into curbs with stock tires. So they need a lot of help. You’ve got two options:
– Route A: weld-on spindle gussets and a meager 3/16″ plate-steel double-shear kit that only adds about 25% strength
– Route B: expensive fully fabricated stock-replacement knuckles + the same double-shear add-on kit
Even with both options:
- Retains light-duty mid-size steering & suspension geometry
- Knuckle geometry only meant for stock ride height
- The more you lift, the less likely to align suspension
- Setting static ride height high, results in large bump steer and camber change through suspension cycle
- Stock mid-size steering geometry at the knuckle is incorrect for an oversized full-size steering rack
- Incorrect geometry → less turning power → larger upstream stress + loads → more frequent failures
- Incorrect geometry → bump steer → excessive cross-caster → increased brake-dive → cornering instability
- Single-shear vertical ball joints top & bottom with no added degree of safety
- Ball-joint bind still limits travel (vertical design issues)
- Double-shear total material thickness is only 0.89″ (RCLT HD is 1.30″)
Avg market price for Replacement knuckles: $1,945
Spindle gusset kit: $65 to $240 = $108 avg
Double-shear add-on: $58 avg
Sales tax: $12.44 (route A) or $150.59 (route B)
Shipping charge: $25 (route A) or $120 (route B)
Labor: (route A) Gussets 5 hours at $125/hr → $500 + (route A or B) Double-shear 1 hour at $125/hr → $125
Total to upgrade or entirely replace stock knuckles: $828 or $2,398
RCLT HD avoids all this entirely by:
- Including the strongest replacement knuckles on the market with 1/4″ plating + one-piece solid-steel billet oversized double-shear steering arms
- All-new steering geometry properly engineered to match full-size steering rack
- Reset suspension geometry designed from a lifted baseline
- Delivers correct alignment and steering response at the ride height enthusiasts actually desire
- Maintains tire alignment through far more suspension travel/articulation
- Horizontal Double-shear ball joints top & bottom add strength + additional degree of safety
- Ball joints that do not limit suspension travel
- Full-size steering geometry increases steering power
- Full-size steering geometry decreases kickback loads on tie rods, rack, and frame mounts
Reliability and performance are not an upgrade you weld together – it’s a product design you choose.
Rolling tally for upgrades 1-4: $7,172 (route a) or $8,742 (route b)
Labor for 1-4: 28 (route a) or 24 (route b) hours
5. LCA Pivot Kit (+1″ Forward)
Because BMR kits only allow room for 35s, an additional product is needed for more clearance whereby you chop off all your stock LCA frame mounts and weld on new brackets that move your suspension forward up to one inch. Now you can fit up to +2″ larger diameter tires.
This is also a really clever solution, however:
- This step alone requires nearly half the total number of hours to install as one complete RCLT HD
- Permanently modifies frame beyond return
- Uses proprietary alignment hardware requiring special instructions to align vehicle
- Clearance penalty: ~2″ lost under the center of front end (not what you want with IFS)
- No other skid plates fit, so proprietary skid is mandatory
- Not compatible with aftermarket Lower Control Arm Frame Brace or Cam Tab Kits (more info).
- If you already have these mods installed, they get thrown in the trash.
Cost: $1,260
Sales tax: $94.75
Shipping charge: $110
Labor: 10 hours at $125/hr → $1,125
Total: $2,715
RCLT HD avoids this entirely by:
- Using a Patented 100% bolt-on design
- Moves knuckles forward double this amount right out-of-the-box with no additional modifications
- 100% improvement to approach angle, protecting bumper and body panels from impact
- Able to fit 40″ tires even without relocating body mounts (see Step 1)
- Does not modify frame mounts and is 100% reversible and transferable to another vehicle
- Reuses all factory alignment hardware, which you can easily pick up over-the-counter nationwide
- Does not require special instructions for alignment

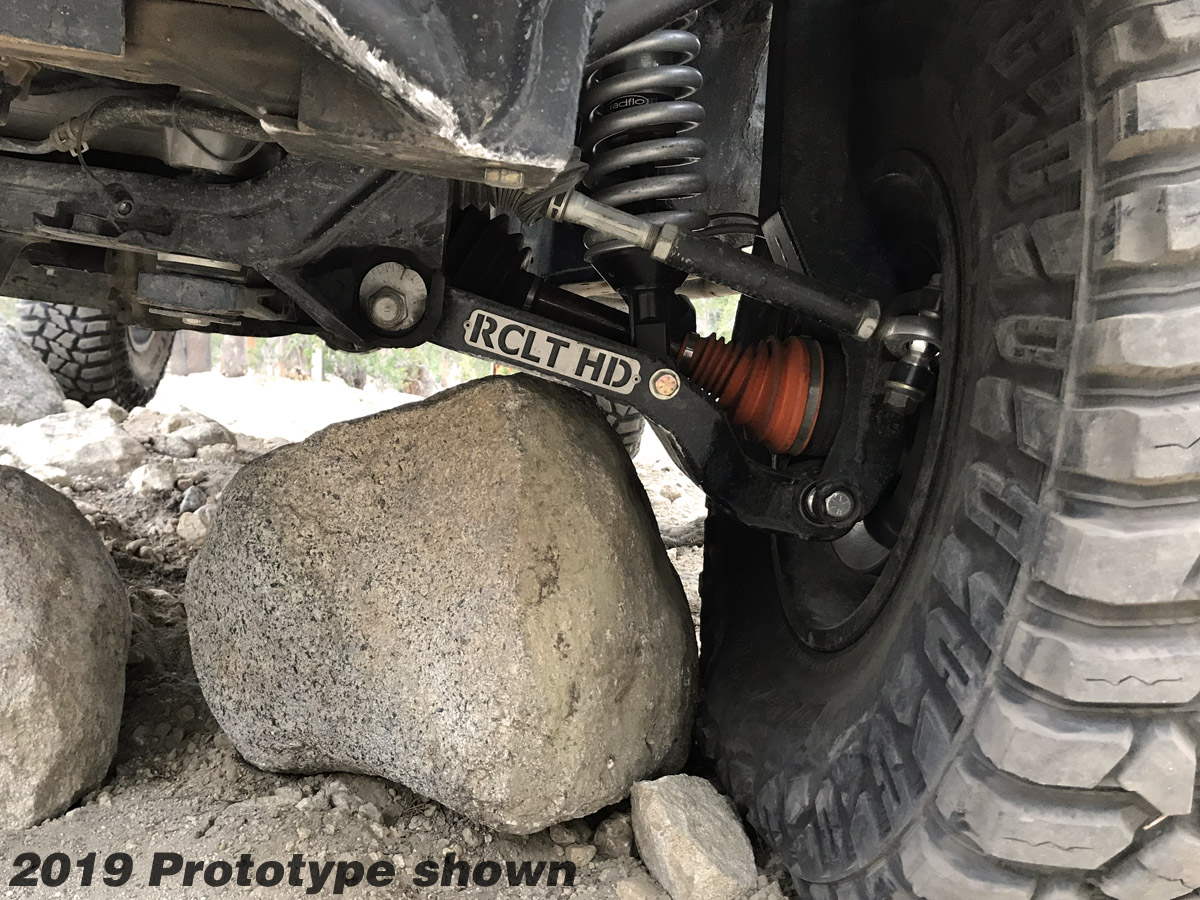

- No ground clearance loss, in fact our inverted control arms gain +4.25″ on both sides
- Compatible with any stock or aftermarket skid plate; Reuse your current skid
- Compatible with aftermarket Lower Control Arm Frame Brace or Cam Tab Kits
Rolling tally for upgrades 1-5: $9,886 (route a) or $11,457 (route b)
Labor for 1-5: 38 (route a) or 34 (route b) hours
⚠ Have now matched the parts + shipping + install labor of RCLT HD
As we’re seeing, a single engineered + integrated system is the only way to beat custom fabrication costs.
6. Actual Long Travel Kit (longer UCA/LCA arms)
You’re already $10K deep in mods, have already exceeded the cost + full install of the RCLT HD Long Travel Kit, and your shopping list has only just now gotten to an actual Long Travel kit.
Long Travel control arms provide increased stability, suspension travel, and capacity to carry more weight and eat up larger bumps.
Avg market price: $3,691 ($300–$600 more if using heim joint and/or billet UCAs which are not being considered here)
Sales tax: $277.53
Shipping charge: $100 avg
Labor: 9 hours at $125/hr → $1,125
Total: $5,193
Rolling tally for upgrades 1-6: $15,080 (route a) or $16,650 (route b)
Labor for 1-6: 47 (route a) or 43 (route b) hours
⚠ Now over double the parts cost & 1.5–3× the labor of RCLT HD
While RCLT HD itself costs 62% more than the average LT kit, it is clear to see that it is a true Bargain Hiding in Plain Sight when you look at the real cost of Long Travel upgrades.
Even after all these upgrades, you’re out double the parts cost and up to 3-times the amount of work to install, and you still have the following drawbacks:
- After 45 hours of labor and permanently modifying your frame, still only +1″ forward wheel mount
→ In comparison, RCLT HD is a patented bolt-on +2″ forward mount design - You still struggle to clear large tires
→ RCLT HD customers are running up to 42″ tires with no suspension or steering issues - Your full-size Tundra rack has been nerfed to mid-size light-duty spec, hardware, & mounts
→ RCLT HD retains 100% full-size design & geometry in both installation & operation - Still using light-duty steering geometry and hardware
→ RCLT HD upgrades your entire IFS to full-size steering geometry, hardware, & strength - Light-duty steering = higher stresses on tie rods, steering rack, and rack-to-frame mounts
→ RCLT HD has full-size steering = increased steering power, reduced up-stream stress, all parts upgraded to full-size - No center or double-shear steering rack mounts, downgraded to small 11mm main rack bolts
→ RCLT HD has full-size frame mounts and triple-path mount strength, uses original full-size 14mm main rack bolts - Knuckle geometry not designed to be lifted (the higher you lift, the worse it drives)
→ RCLT HD resets geometry at a new lifted baseline you actually plan to use - At this price-point you get non-adjustable UCAs
→ RCLT HD has an additional ±1° of caster adjustability at each UCA - Multiple custom and proprietary parts that are more expensive and more difficult to get replacements
→ RCLT HD steering rack and ITR are unmodified, mass-produced, available worldwide - Requires special alignment instructions
→ RCLT HD reuses all factory eccentrics for ease of serviceability - Far weaker single-shear ball joint connections with zero degree of safety: Once a bolt or mount breaks, you crash
→ RCLT HD’s double-shear is more than twice as strong + uses 1-ton 5/8″ control arm and steering hardware
→ Even if every ball joint and tie rod end bolts were to all six simultaneously snap in half, you’d still have a chance to pull over safely - 2″ less ground clearance at the belly
→ Precisely the opposite benefit of having IFS - Non-inverted LCA resulting in at least 4.25″ less ground clearance under each arm
→ Far more likely to get hung up & stuck on trail - 3/16″ thick plate steel control arm and knuckle band-aid construction
→ RCLT HD uses both 1/4″ plating and 100% solid billet steel construction - Frame modified beyond return and setup not transferable
→ RCLT HD does not touch or modify a single factory IFS or steering bolt hole or mount, and is 100% reversible & transferable
→ Take RCLT HD with you when you grow your family and need an SUV, or God forbid you roll or total your vehicle - Stuck using just one proprietary feature-locked skid plate
→ RCLT HD is compatible with any non-proprietary skid: stock or aftermarket
Lastly, there are a few specialty LT kits that move the knuckle forward +1″, however, these kits are even worse because they do not also move the steering system forward with it – But RCLT HD does. In fact, we mount the MarRack 50mm (1.97″) forward, and on top of this we alter our knuckle steering geometry to match our new +2″ forward knuckle placement.
There is simply no comparison to RCLT HD.
But the real penalty isn’t your current setup – it’s the next 5 figures you’re about to trap into sub-par non-integrated separate irreversible modifications.
RCLT HD is the only long-travel kit that replaces every weak link – for literally half the price of cobbling together partial fixes.
Hidden Expenses
Because you’ll be ordering various upgrades from half a dozen separate businesses trying to improvise your way to RCLT HD, total shipping costs come out to a combined $300 to the west coast or up to $500 to ship out east. We’ve already included this expense in the above steps, but it hits home when you see it added up:
Shipping Costs for Steps 1–6: $300–$500 (already included in previous calculations)
RCLT HD is $100–$300 less
We also have Sales Tax, which is often overlooked:
Sales Tax for Steps 1–6: $770 (already included in previous calculations)
RCLT HD is $270 less
Finally, we need to keep our vehicles aligned for proper tire life, safety, and performance. If you were to do mods 2-6 at the same this, this would only be a one-time cost, but the heart of doing work piecemeal is that you stair-step and spread out mods as you can fit into your budget and schedule. But because RCLT HD is a single integrated system, you align it once yet gain every benefit.
Cost for repeat front-end re-alignments: $100 × 5 alignment affecting mods
Total: $500
RCLT HD is $400 less
The total comparison here is hard to look at:
- Steps 1–6: $1,670 in avg hidden costs
- RCLT HD: Only $799 (less than half!)
Final tally for upgrades 1-6: $15,080 (route a) or $16,650 (route b)
The Harsh Reality
| Trying to “build your way” to RCLT HD | Total Avg Cost |
|---|---|
| Stock Knuckle Path (route a) | $15,080 |
| Replacement Fabricated Knuckle Path (route b) | $16,650 |
Now Compare to RCLT HD
RCLT HD kit: $5,999
Steering rack avg: $627
Avg sales tax: $498
Shipping: $200 (one flat-rate to all lower 48)
Total Avg System Cost: $7,324
Labor: 2–3 days for Tacoma or up to 4–5 days for GX460
Avg only just 28 hours at $125/hr → $3,500 (compare to 45 avg hrs for Steps 1–6!)
Front end alignment: $100 (once-and-done)
Total Avg System Cost + Install + Alignment: $10,924
| RCLT HD — Purchased, Delivered, Installed, & Aligned | $10,924 |
Therefore, the patched piecemeal approach comes out to an average of $15,865, while RCLT HD delivers a proven engineered system at 1.5× reduction in full system cost, plus labor savings of 11–31 hours and major reductions in long-term maintenance and downtime losses.
And we offer payment terms, so you can still get RCLT HD (your cake) and break it into piecemeal payments that fit your budget (eat it too) and come out with money left for other mods.
Every geometry reset, alignment baseline, double-shear, ground clearance optimization, and steering power gain is already built into the RCLT HD system. There are no band-aids to buy. No parts to retrofit. No tolerances guessed. No piecemeal steering, alignment, or handling geometry issues. It’s engineered correctly from a lifted baseline and everything works together as a single integrated system right out-of-the-box.
RCLT HD takes significantly less time & cost than the list of patches you were about to pay to have shipped, welded, and installed.
Including Required Long-Travel Axles and Coil overs
As noted earlier, any long travel IFS setup – regardless of path – requires longer axles (4WD) and taller coil overs. These parts are required components, not alternatives, which is why they were excluded from the earlier comparison.
However, when we include these required parts, the cost difference becomes even more telling.
Even assuming premium, high-end components – such as RCV Ultimate axle shafts and compression-adjustable coil overs – the engineered system approach still comes out ahead:
Cost Comparison – With Axles & Coil overs Included
| Route | Prior Total (no axles or coil overs) |
With Premium Axles & Coil overs (~$4,600) (100% ready to hit the trail) |
|---|---|---|
| Piecemeal LT Build (average of routes A & B) | $15,865 | ~$20,400 |
| RCLT HD Build | $10,924 | ~$15,500 |
Once required long travel axles and coil overs are accounted for, RCLT HD still delivers a fully built, installed system for less money – while the piecemeal paths remain more expensive, in fact even before including axle shafts and coil overs.
In other words, the required long-travel components don’t change the outcome – they reinforce it.
This is the advantage of a true engineered system: when the geometry, steering, and suspension work together from the start, the required supporting components don’t stack cost – they compound value.
The Conclusion Toyota/Lexus Enthusiasts Have Been Searching For
RCLT HD flips the IFS narrative on its head: More capability, less complexity, lower install labor, and proven geometry-engineered strength that preserves long-term reliability and safety.
| Metric | Without RCLT HD | With RCLT HD |
|---|---|---|
| Cost | $5,000 more on average | 5–19× less expensive on steering alone |
| Labor Hours | 43–47 | ~28 hours avg — a reduction of 11–31 hours, or roughly 1.5–3× faster |
| Geometry | Built for stock height, stays wrong after lift | Built for lifted baseline, engineered & predictable steering/handling (see: Steering Geometry That Works) |
| Replacement | Weeks of downtime waiting for custom and proprietary parts | Worldwide access to standard replacement parts |
| Serviceability | Non-OEM proprietary alignment eccentrics requires special service instructions | 100% original Toyota procedure |
| Reliability | Half a dozen separate band-aids holding things together, increased ITR complexity compromises steering safety | Single Integrated Heavy Duty System, OE-grade parts, Six consecutive Ultra4 seasons & King Of The Hammers competitions with no failures |
| Ball-Joints | Vertical, single-shear, light-duty hardware, limited articulation, no degree of safety | Horizontal, double-shear, full-size 1-ton hardware, unrestricted motion, added degree of safety |
| Clearance | Mandatory use of proprietary skid plate, 2″ ground clearance loss | No clearance loss, stock or aftermarket skid compatibility, inverted LCA design gains nearly half a foot on each side |
| Strength | 3/16″ plating, welded multi-piece plate steering arms that retain incorrect mid-size steering geometry, additional upstream steering stress, Tundra rack downgraded to smaller hardware, lacks frame mount upgrades | Solid one-piece steering–hub–brake caliper design, matched full-size steering = more power & less upstream load (see: Our Steering Arms Are Built Different), triple-path rack mount (see: Ultimate Rack Mount Upgrades), 1/4″ plating in UCA, LCA, & Knuckle, double-shear throughout |
RCLT HD is a sealed, OE-grade engineered system that preserves alignment, geometry, and frame serviceability long after install.
Feature Comparison — RCLT HD vs. Patched-together Options
| Feature | RCLT HD | Patched-together Path |
|---|---|---|
| Tire Fitment | 40″ out-of-the-box | 35″ with BMC, 37″ with BMC+Pivot Kit |
| Steering Rack | Full-size Land Cruiser (38mm rack, large 28mm ITR threads with highly reliable press-fit OE joints, available worldwide for Left or Right hand drive) | Narrowed Tundra rack (internally custom modified, tiny ITR threads, no center or double shear mounts, up to weeks for replacement) |
| ITR Strength | Thick-wall Marlinks with massive 28mm connection to rack + worldwide availability with reliable press-fit ball joints, mass-produced & cost as low as $10 | Tiny 14mm (Tacoma) or 22/24mm (SUV) threaded connection to rack, custom clevis & non-OE heims not found at auto parts stores, spares cost hundreds to thousands of dollars |
| Knuckles | Full fabricated with 1-piece CNC billet lower, double shear with 1-ton hardware, 1/4″ plating, geometry engineered for full-size steering | Fab knuckles or welded stock, retains single shear vertical ball joints, 3/16″ plating, retains incorrect mid-size steering geometry |
| Steering Geometry | Full-size geometry built into knuckles for stronger steering + less feedback stress on all components | Light-duty mid-size geometry baked into modified full-size rack (reverse of how it should be) |
| Suspension Geometry | Engineered for lifted setups (reset baseline) | Stock geometry Toyota intended for stock ride height |
| Down Travel | Unrestricted (horizontal ball joints) | Limited (vertical ball joints) |
| Ground Clearance | Highest available on market (inverted LCA design gains nearly half a foot of clearance), use any skid plate with any desired features | Lost 2″ under sub frame and nearly half a foot under control arms, can only use 1 proprietary skid plate with limited features |
| Stack-of-mods Required | None | 5–7 separate products + up to 3× welding and fabrication |
| Ease of Replacements | OE Land Cruiser rack, ITR, alignment hardware, mass-produced & available worldwide | Custom rack, custom ITR, proprietary alignment hardware, weeks of downtime |
| Proven Strength | Over quarter of a million miles on 40s, multiple Ultra4 & KOH seasons with zero failures | Not a “system design”, real world usage unknown, modified frame mounts illegal for competition use |
| Reversible | Yes, 100% reversible and fully transferable to another vehicle | No, frame must be permanently cut & welded (non-reversible) |
The Build List Stops Here
RCLT HD is the most advanced long-travel steering + suspension system ever built for mid-size Toyota platforms that keeps more of your hard earned cash available for other upgrades.
Invest once. Drive forever.
Avoid the next irreversible and expensive wrong turn by building your rig the right way the first time with RCLT HD.
