Strut Tower Reinforcement Ring Set, 1995-2004 Tacoma, 1996-2002 4Runner

Prevent Frame Fatigue & Strengthen Your Suspension Mounts

Originally developed years ago for our Type III IFS RCLT HD Race Teams to reinforce the strut towers of V8-powered Ultra4 4Runners, these Strut Tower Reinforcement Rings are designed to handle the toughest of conditions.

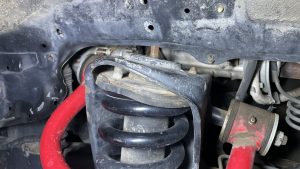

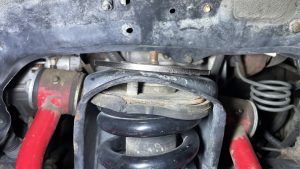

The problem: Over time, heavy loads, off-road impacts, and constant suspension cycling cause stress fractures in the thin factory strut towers, leading to frame fatigue and potential failure—especially in high-load applications like:

Overlanding with added vehicle weight
High-speed desert racing & jumping
Slow-speed rock crawling with extreme articulation

The solution: Laser-cut from 3/16″ USA steel, these weld-on plates increase the factory frame thickness from 3mm to 7.75mm, reinforcing a critical area of the front suspension. By distributing loads more effectively, they help prevent cracking and significantly increase frame longevity.

Key Features:

Does not interfere with ABS routing bolt hole and bracket
Adds 2.5X more material for better load distribution
Fits Type II (Prado 90) IFS Frames
- View our Frame Identification Chart for more info
Designed for the toughest off-road conditions
Sold as a pair (one for each side)

Why risk a $1,000+ frame repair when you can reinforce your suspension for just $30–$35? This simple reinforcement provides big protection against long-term suspension stress.

Weight	1.09
Dimensions	4.75 × 4.75 × .5 in

Make	Model	Year	Notes
Toyota	4Runner	1996 - 2002
Toyota	Tacoma	1995 - 2004

We appreciate your feedback! Please share your thoughts on the product itself, including its performance, design, and how it meets your needs.

Guidelines for Submitting a Review:

Account Required: In order to limit spam we ask that you please Log In first.
Focus on the Product: Please review the product's performance, durability, and how it fits your expectations.
Avoid Reviewing the Shopping Experience: If you have feedback regarding our website, customer service, or shipping, please contact us directly at Customer Service to help us improve this process of customer experience.
Be Honest and Detailed: Whether your experience was positive or had room for improvement, we want to hear about it.
Respectful Language: Please use respectful and appropriate language in your review.

What Happens Next?

Review Moderation: All reviews are subject to moderation before being published. This ensures that the feedback we share with our community is helpful, relevant, and focused on the product.
Private Outreach: If we receive constructive feedback, our team may reach out to you directly to better understand your experience and explore ways we can improve.

Thank you for helping us make Strut Tower Reinforcement Ring Set, 1995-2004 Tacoma, 1996-2002 4Runner even better!

Reviews

There are no reviews yet.

Be the first to review “Strut Tower Reinforcement Ring Set, 1995-2004 Tacoma, 1996-2002 4Runner”

You must be logged in to post a review.

Install Instructions

Step 1. Remove the 3 nuts (and washers) from the top of the frame.

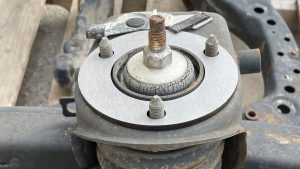

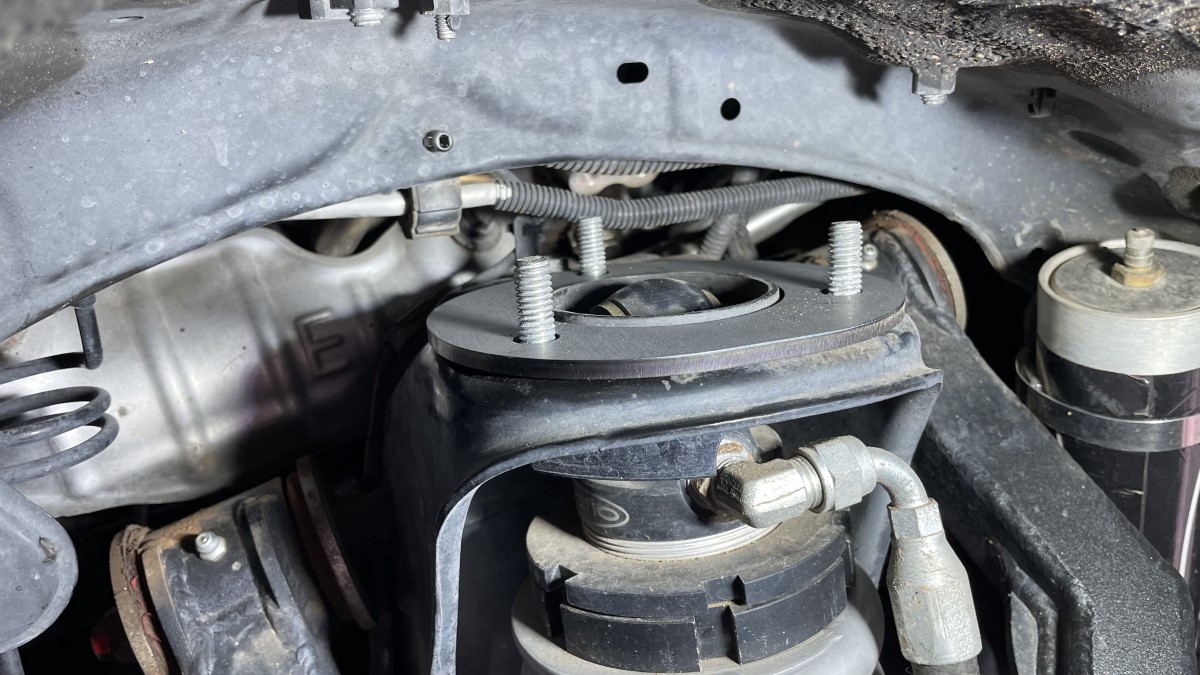

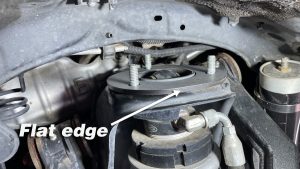

Step 2. Position Ring onto frame to get an idea of weld area. For the 2003+ Type III/IV Ring (p/n MCAR-02-0001), position the flat edge facing out as shown.

Step 3. Remove ring, then using a flapper wheel or sand paper, remove paint from surrounding area. Recommended: Prior to welding, paint top of tower and bottom of ring with weldable Steel-It spray paint for maximum corrosion resistance.

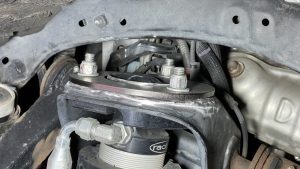

Step 4. Position Ring onto frame and torque all three nuts to 33 lb-ft (lubricated) or 45 lb-ft (dry).

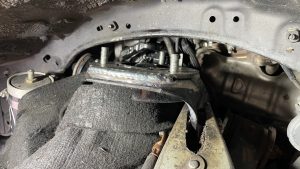

Step 5. Cover surrounding parts with a fire resistant welding blanket and apply anti-spatter weld spray to the weld area.

Step 6. Stitch-weld the outer and side faces, as well as the inner diameter of the ring to the frame.

Step 7. After the frame has cooled, clean grease and/or oil from the area and then spray paint to prevent corrosion.

Additional Notes

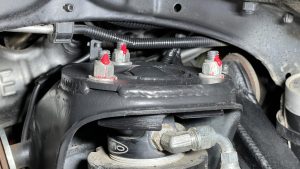

Our rings are designed to sit flush and to not interfere with factory ABS and wiring harness mounts. Torquing all nuts prior to weld will close any gaps as shown at right.

If your frame is already damaged, it must be repaired to ensure the strut assembly and reinforcement rings sit flush. Toyota still offers replacement strut/shock tower assemblies, but at $700 per side, the cost doesn't stop there. Proper replacement requires cutting the old tower off, then properly re-aligning and fully welding the new one in place—a job that demands cab (or full body) removal, engine removal, and extensive shop labor. Prevent the headache with our reinforcement rings before frame fatigue becomes a costly disaster!
