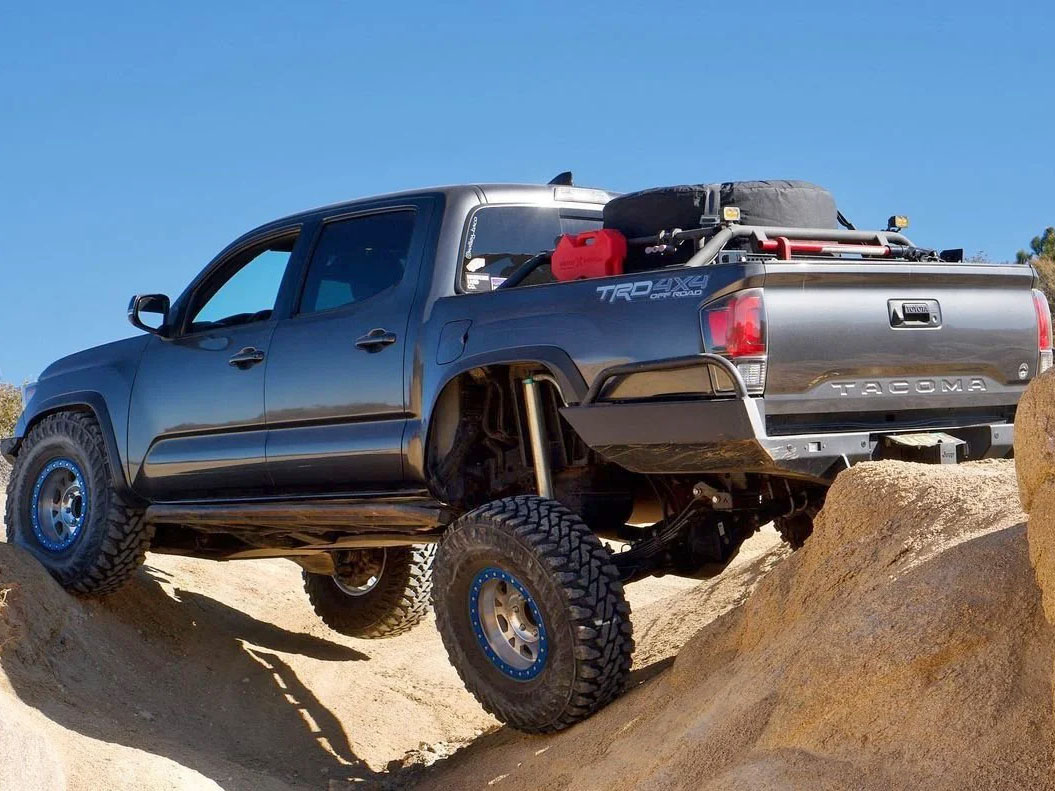

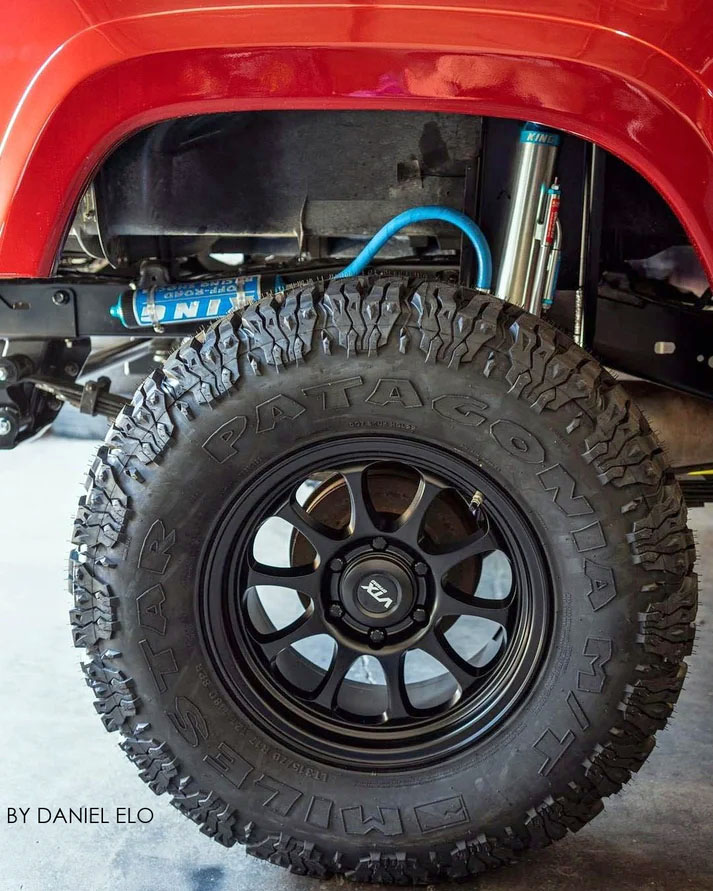

Archive Garage 2.5″ OD Rear Shock Relocation Tower Kit for 2005-23 Tacoma

Archive Garage introduced the original 2.5″ kit to mount 2.5″ x 12″ to 2.5″ x 14″ travel shocks without cutting your bed nearly a decade ago! This “under bed” kit allows bolting to bed for less frame stress than other kits, which also allows a crossbar to be fit to lock out the frame rails from rotating inward.

Laser cut from 3/16″ HSLA 50,000 psi steel (30% stronger) CNC brake-formed towers for toughness. Towers are blasted, primed, and powder coated black for top corrosion resistance. Axle tabs (included) are 1/4″ HSLA for severe use and rock crawling.

We also offer longer rear brake lines for tall lifts or a lot of flex, such as running a rear setup with 12 to 14″ of travel. Click here to view those!

Free Shipping to the Lower 48-States: Because Archive Garage is in New York and on the other side of the country from us, we’ve worked out a deal to have them drop-ship direct to you instead of requiring an additional shipment from us. As a result, please consider transit time from the north-east. For example, west coast customers may expect up to 5 days or more for delivery. Click here to view an estimated Transit Time Delivery Map, adding potentially a day or two for Archive Garage to process the order on their end. If there are any delays or stock issues from Archive Garage, then we will let you know, thanks!

Install Fitment & Notes for 2005-2023 Tacoma

Leaf Pack	Est. Lift Amount	Axle Tube to Frame Bottom
Stock 3/1 – 0lbs	0in	8.25in
Archive MD – 0lbs	3.0in	11.25in
Archive MD – 300lbs	2.5in	10.75in
Archive MD – 600lbs	2.0in	10.25in
Archive HD – 600lbs	3.0in	11.25in
Archive HD – 1250lbs	2.0in	10.25in
Archive XD – 1250lbs	3.0in	11.25in
Archive XD – 1750lbs*	2.5in	10.75in

*Disclaimer: Archive Garage in no way recommends exceeding Toyota’s GVWR. Owner assumes all risk when exceeding Toyota’s GVWR or GAWR.

Recommended Shocks (confirmed fit & performance)

Shock	Brand	Part Number
Accutune Fox Factory RR 2.5×12	Fox	981-25-002-ARG
Accutune Fox Factory RR 2.5×14	Fox	981-25-003-ARG
AccuTune Fox Factory RR DSC 2.5×12	Fox	981-25-002-ARG
AccuTune Fox Factory RR DSC 2.5×14	Fox	981-25-003-ARG
AccuTune King RR 2.5×12	King	King PR2512-SS
AccuTune King RR 2.5×14	King	King PR2514-SS
AccuTune King RR 2.5×12 w/ adjuster	King	King PR2512-SS-A
AccuTune King RR 2.5×14 w/ adjuster	King	King PR2514-SS-A
ADS Smooth Body 2.5×12	ADS	250-SBR12-W00
ADS Smooth Body 2.5×12 w/adjuster	ADS	250-SBR12-WA0

*If using HD Springs or XD 12in is best
*For additional options reach out to shock company to confirm with specs below

Shock Specs

2.5″ & 3.0″ Smooth Body Shock Remote Resi
Shock Travel	Fittings/Spacers
12-14in	Standard rod-end shocks (1.5″ wide, 1/2″ bolt)
2.5″ Bypass	We do not guarantee that all bypasses will fit due to the numerous brands and possible custom layouts you can order. -Many have successfully installed 2.5″ bypasses, 3.0 bypass will not fit -Best tube layout: bypass tubes placed forward towards engine, with remote hose elbow towards the rear bumper. -We recommend only 12″ travel bypasses because shock piston at normal ride height needs to be below comp. tube ports/zones.

Wheel Fitment

Minimum Wheel Backspacing	4.75″ + 1.25″ wheel spacer
Offset Visualizer App

Dimensions	× × in
Brand	Archive Garage

Make	Model	Year	Notes
Toyota	Tacoma	2005 - 2023
