ARB Air Compressor, Maximum Performance

SKU ARB-CKMTA12Categories , ,

$616.00

Out of stock

Out of stock

Out of stock

This is the ARB Maximum Performance Compressor Kit. This compressor is highly recommended if you use an electric compressor for your tires, especially if your tires are 35″ or larger. This is the newest air compressor ARB offers and it packs a double-punch, out performing their previous best compressor by 100%. ARB designed this twin-compressor to fill the market need for a compact yet high-volume compressor to suit the high volume airflow needs of most air powered tools and larger tires. It works great for Air Locker Activation and inflating tires quickly! (CKMTA12)

Includes:

  • 12 VDC air compressor
  • Complete wiring loom with air locker solenoid plug-in contacts
  • Quality compressor isolating switch
  • Air locker supply rated pressure switch
  • Relocatable splash resistant air filter with washable high-flow sintered bronze filter cartridge
  • Mounting hardware with reinforcing backing plate
  • Comprehensive installation guide

Features:

  • Designed for Air Locker use, air tools, and filling off road tires
  • Highest flowing 12 volt DC compressor of it’s size on the market
  • Pressure switch controlled air manifold system regulates pressure between 135 and 150 PSI. Over-pressure safety valve equipped
  • Sealed for moisture and dust resistance
  • Mount is designed for anti-vibration & sound deadening
  • Hard anodized cylinder bores and teflon impregnated carbon fiber piston seals for reduced friction and maximum trouble free life
  • Dual heavy duty maxi-fuse equipped circuit protection and fault redundancy
  • In the highly unlikely event a motor stops working, the unit will still function from the other motor
  • Quality components for quiet operation and extra long life
  • Anodized mounting bracket and powered cooling fan dissipates heat from motors & electronics yielding a 100% duty cycle rating at room temperature
  • Constructed entirely of lightweight, high strength engineering grade materials
  • Motors are water sealed, 100% ball bearing equipped, internally thermal protected against extreme temperature damage, and feature a unique linear brush pre-load system for extra long life, low heat and quiet operation throughout the life of the unit.
  • Sealed illuminated automotive grade dash switch included
  • Fully serviceable and all replacement parts available
  • EMF suppressed for use in proximity to sensitive electronic equipment

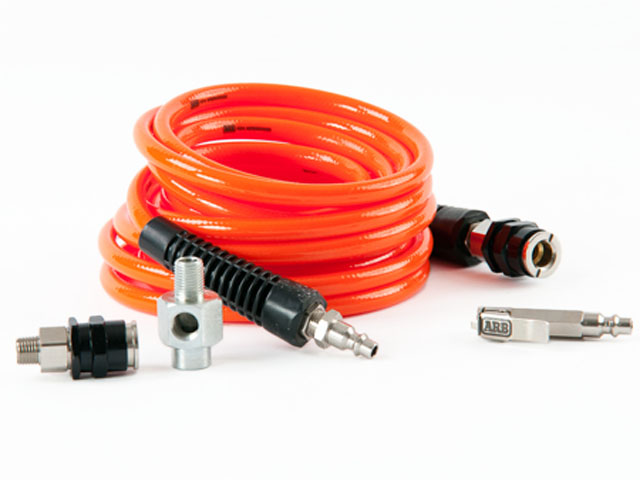

  • Optional tire inflation hose kit available here

Specifications:

  • 12 VDC
  • 28.4 Amp current draw at 0 PSI
  • 50.4 Amp current draw at 29 PSI
  • 6.16 CFM at 0 PSI
  • 4.68 CFM at 29 PSI
  • Built-in internal pressure switch
    • Activates @ 135 PSI
    • Deactivates @ 150 PSI
  • 180 PSI internal safety valve
  • 100% duty cycle
  • Weight: 17.4 pounds
  • Height: 4.1″
  • Length: 10.9″
  • Width: 7.5″
Weight21 lbs
Dimensions19.69 × 10.24 × 4.72 in
Make Model Year Notes
Ford Bronco 2021 - 2024
Jeep Cherokee XJ 1984 - 2001
Jeep Gladiator JT 2020 - 2024
Jeep Wrangler JK 2007 - 2018
Jeep Wrangler JL 2018 - 2024
Jeep Wrangler TJ 1996 - 2006
Jeep Wrangler YJ 1986 - 1995
Lexus GX460 2010 - 2024
Lexus GX470 2003 - 2009
Lexus LX450 1996 - 1997
Toyota 4Runner 1984 - 1989
Toyota 4Runner 1990 - 1995
Toyota 4Runner 1996 - 2002
Toyota 4Runner 2003 - 2009
Toyota 4Runner 2010 - 2024
Toyota FJ Cruiser 2006 - 2009
Toyota FJ Cruiser 2010 - 2014
Toyota Hilux/Pickup 1979 - 1983
Toyota Hilux/Pickup 1984 - 1988
Toyota Hilux/Pickup 1989 - 1995
Toyota Land Cruiser 100-series 1998 - 2007
Toyota Land Cruiser 200-series 2008 - 2021
Toyota Land Cruiser 300-series 2024
Toyota Land Cruiser 40-series 1958 - 1984
Toyota Land Cruiser 50-series 1967 - 1980
Toyota Land Cruiser 60-series 1980 - 1989
Toyota Land Cruiser 80-series 1990 - 1997
Toyota Sequoia 2000 - 2007
Toyota Sequoia 2008 - 2022
Toyota Sequoia 2022 - 2024
Toyota T100 1993 - 1994
Toyota T100 1995 - 1998
Toyota Tacoma 1995 - 2004
Toyota Tacoma 2005 - 2015
Toyota Tacoma 2016 - 2023
Toyota Tundra 2000 - 2006
Toyota Tundra 2007 - 2021
Toyota Tundra 2022 - 2024
