Features & Benefits

• Vehicle specific design for 2005-2022 Toyota Tacoma
• 2.5 EXP Series front shocks with internal reservoirs utilize factory coil and coil hardware
• Adjustable front ride heights from 1-2” of front lift over stock with the use of snap ring
• Included sway bar relocation brackets reduce ensure sway bar clearance from EXP coilovers
• Allows for full wheel travel without overstressing OE components
• Tubular UCAs for added strength, durability, and alignment correction for better drivability
• UCAs feature the patented (U.S. Pat. 10731700) Delta Joint for extended longevity
• Rear Add-a-Leaf softens spring rate for improved ride quality while providing 1.5” of rear lift
• 2.0 Aluminum Series remote reservoir rear shocks provide balanced tune with coilovers and increased performance
• All ICON shock absorbers are fully rebuildable and re-tunable

Tech Info:

• OEM Wheels & Tires Fitment: Yes
• Recommended Aftermarket Wheels: ICON Alloys | 17×8.5 with 4.75” Backspace / 0mm Offset
• Recommended Aftermarket Wheels: ICON Alloys | 18×9 with 5.00” Backspace / 0mm Offset
• Recommended Aftermarket Wheels: ICON Alloys | 20×9 with 5.00” Backspace / 0mm Offset
• Recommended Aftermarket Tires: 33″ x 11.50″ (Minor fender trimming may be required)
• APPLICATION NOTE #55: SHOCKS ARE FULLY SERVICEABLE. LIFT HEIGHTS INDICATED ARE FOR A STOCK EQUIPPED VEHICLE.
• APPLICATION NOTE #110: TRIMMING REQUIRED FOR RECOMMENDED TIRE SIZE
• APPLICATION NOTE #144: NOT COMPATIBLE WITH TRD PRO
• TECH NOTE: Not compatible with 2005-2015 rear wheel drive Tacomas with 5 wheel lug studs
• TECH NOTE: Not compatible with 2021-2022 Tacoma Trail

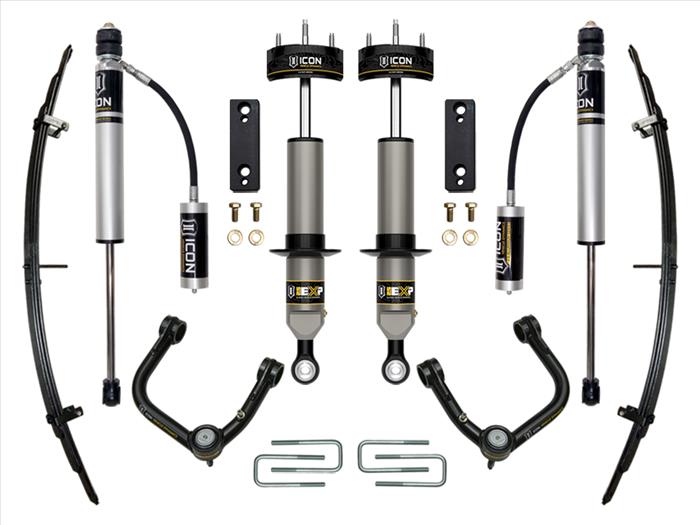

System Components:

• 58632 (QTY: 2) | 05-UP TACOMA FRONT 2.5 EXP COILOVER
• 611030 (QTY: 1) | 05-UP TACO/07-09 FJ SWAYBAR RELOCATION KIT
• 58450DJ (QTY: 1) | 05-UP TACOMA TUBULAR UCA DJ KIT
• 51100 (QTY: 1) | 96-UP TACOMA/00-06 TUNDRA 1.5″ ADD-A-LEAF KIT
• 56503R (QTY: 2) | 05-UP TACOMA 4WD 0-1.5″ REAR 2.0 VS RR
