ARB Air Compressor, Compact

You are here

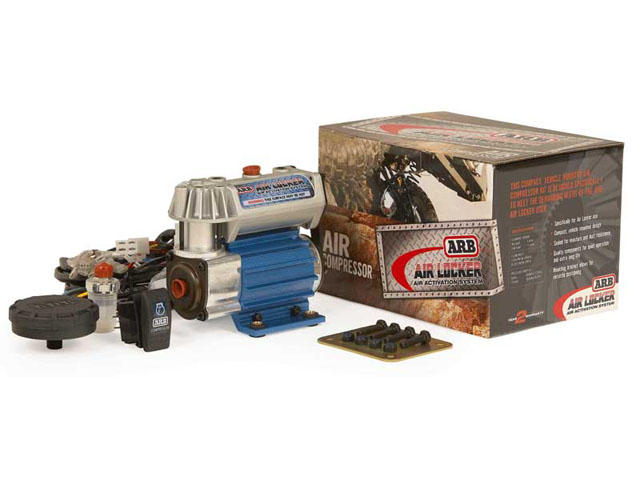

This compact vehicle mounted Air Locker Air Activation System has been specifically designed to provide on-board air for activating ARB Air Locker locking differentials. A smaller unit, it comes with a mounting bracket that allows versatile positioning and is sealed for moisture and dust resistance with quality components used for reliable compressed air and extra long life. (CKSA12)


  • 12 VDC
  • 5 amp current draw at 0 PSI
  • 6.5 amp current draw at 29 PSI
  • 0.88 CFM at 0 PSI
  • 0.47 CFM at 29 PSI
  • Includes external pressure switch
    • Activates @ 70 PSI
    • Deactivates @ 100 PSI
  • 180 PSI internal safety valve
  • 35% duty cycle
  • Weight: 5.3 pounds
  • Height: 4.8"
  • Length: 6.4"
  • Width: 3.5"
  • Compressor weight: 3.4 lbs
