| W56-B
Transmission

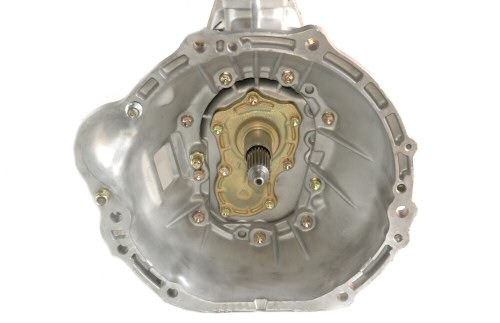

The W56-B was used on 1986-1988
EFI Toyota Pickups and 1986-1989 EFI 4Runners. This model can be
identified by having both a cast steel center section and a
single shifter. This transmission is 25 3/8" long and weighs
85 lbs as pictured. The center of the trans shifter is 21"
back from the front edge of the bell housing.
- Years used: 1986 - 1989
- Uses Type 3
top shifting transfer case.
|
|
|
|
| Model |
1st Gear |
2nd Gear |
3rd Gear |
4th Gear |
5th Gear |
Reverse |
| W56 |
3.95 |
2.14 |
1.38 |
1 |
.85 |
4.09 |
|
| Transmission |
Identifing Input Bearing Number |
| W56-A, B & C |
6307-N, HR6307-N |
|
| W56
Internal Rebuild Kits
Transmission rebuild kits feature NSK & Nachi Japanese made
bearings and include seals & gaskets. See
HD bearings
|
|
| |
| External Replacement Boots
OEM Factory Toyota clutch fork and shifter boots.
 |
Clutch Fork Pivot Boot, $11.38 each |
|
|
Transmission Shifter Boot (W56 A/B), $10 each |
|
 |
|
